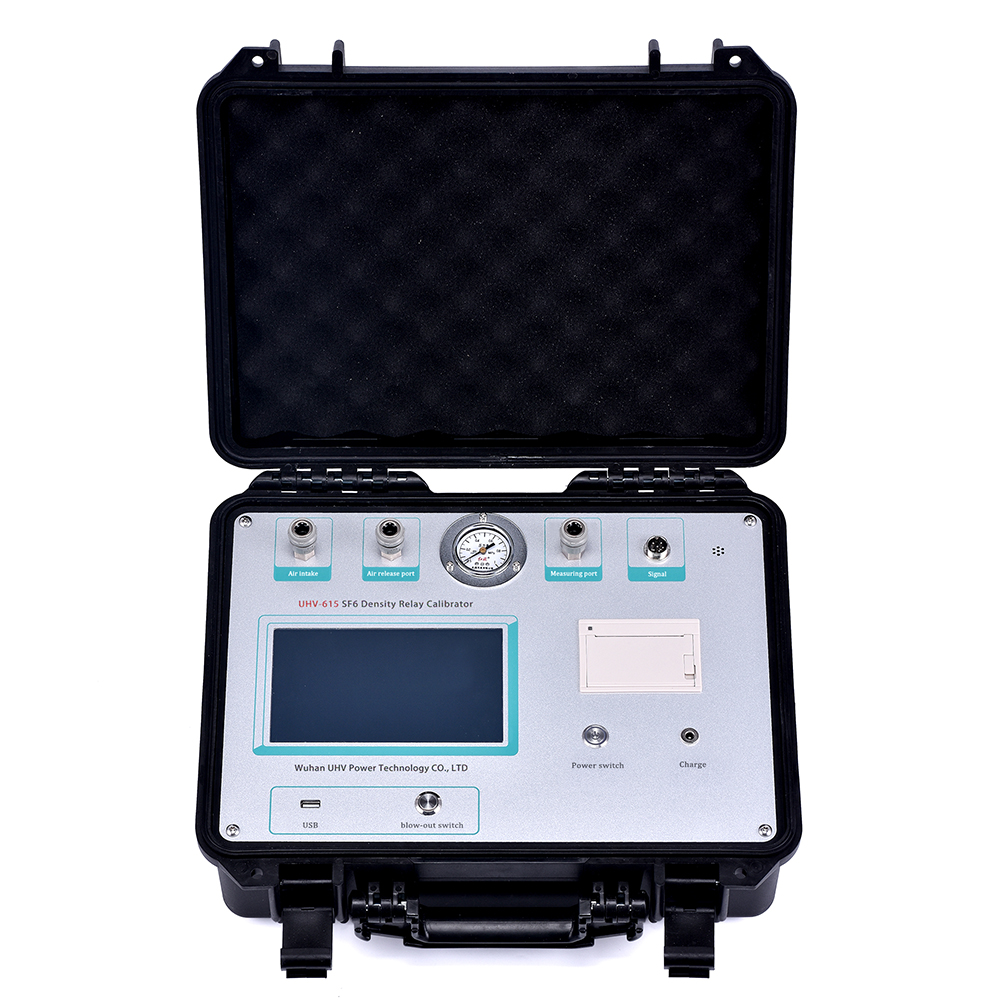

Ang UHV-615 SF6 density relay tester ay isang matalinong SF6 density relay calibration instrument. Ang mga pangunahing bahagi ay gumagamit ng mga na-import na bahagi, na may mataas na antas ng pagsasama, mataas na katumpakan, mahusay na pag-uulit at mataas na pagiging maaasahan
Mga Detalye ng Produkto ng UHV-615 SF6 Density Relay Tester
Product Introduction:
Wuhan UHV Power Technology Co.,Ltd., is a professional manufacturer and supplier of high-voltage power testing equipment in China.SF6 Density Relay Tester is intelligent, automatic SF6 density relay calibrating instrument . The instrument adopts single cycle instruction microprocessor-based technology, the running speed is 10 times than the ordinary single chip, can carry out on-site calibrating on SF6 density relay contact output pointer type and intelligent type current output, using interrupt mode for real-time capture of the density relay action, so the instrument to measure accurately and timely. This instrument is a portable testing instrument SF6 gas arbitrary environmental temperature pressure standard conversion, it can automatically check the SF6 density meter, pressure meter.
Product functions
SF₆ density relay automatic calibration Performs automatic testing and calibration of SF₆ gas density relays.
SF₆ density gauge automatic calibration Can perform on-site calibration of SF₆ density gauges.
SF₆ pressure gauge automatic calibration Can test relevant SF₆ pressure measuring instruments.
Density relay action value testing Captures the action moment of the density relay in real time, accurately measuring the relay's action value.
Multi-contact simultaneous testing Can simultaneously test the action values of 1 to 3 sets of contacts.
Supports testing of normally open and normally closed contacts The initial state of the relay contacts can be either normally open or normally closed without affecting the test.
Mga Teknikal na Parameter
katumpakan ng pagsukat
0.2 F●S
Pressure displayresolution
0.001MPa
Pressure measuring range
0～0.99MPa
Temperature measurement range
-20℃～80℃
Temperature measurement error
±0.5℃
SF6 gas emissions
During the entire verification process, SF6 gas emissions are extremely low
Pagpapakita
Industrial grade 7-inch full-color high-definition LCD screen, displaying both measured pressure values and equivalent pressure values at 20 ℃
Operating mode
Touch screen
Paraan ng pag-print
Array printing
Data Storage
Up to 1000 measurement data can be stored
Gumaganang power supply
24V lithium battery power supply
Overall Power Consumption
≤20W
Host size/weight
380×290×250(mm3)/4.9kg
Attachment box size/weight
390×340×200(mm3)/7.8kg
Product Features:
1、High testing accuracy: The core components are imported, with high integration, precision, repeatability, and reliability. Due to its use of high-speed sampling A/D, it can not only measure density relays with conventional operating values, but also density relays with particularly small operating values.
2、The calibration process does not require a constant temperature chamber, and SF6 gas density relays and pressure gauges can be calibrated within any effective temperature range. By using pressure and temperature dynamic compensation algorithms, the pressure and 20 ℃ equivalent pressure values are automatically converted, and the pressure at the current temperature and the equivalent pressure at 20 ℃ are displayed, completely solving the problem of difficult on-site calibration of SF6 gas density relays.
3、Powerful function: capable of measuring density relays of different pressure types, both relative and absolute pressure density relays can be measured.
4、The initial state of the 1-3 sets of contacts in the density relay can be in any form (normally open or normally closed), and the up and down values of the 1-3 sets of contacts can be measured simultaneously, such as alarm, lockout, overpressure, etc. Therefore, this instrument can adapt to the fully automatic calibration of all new and old density relays.
5、Simultaneously displaying the current pressure and ambient temperature during measurement, solving the problem of on-site calibration of density relays.

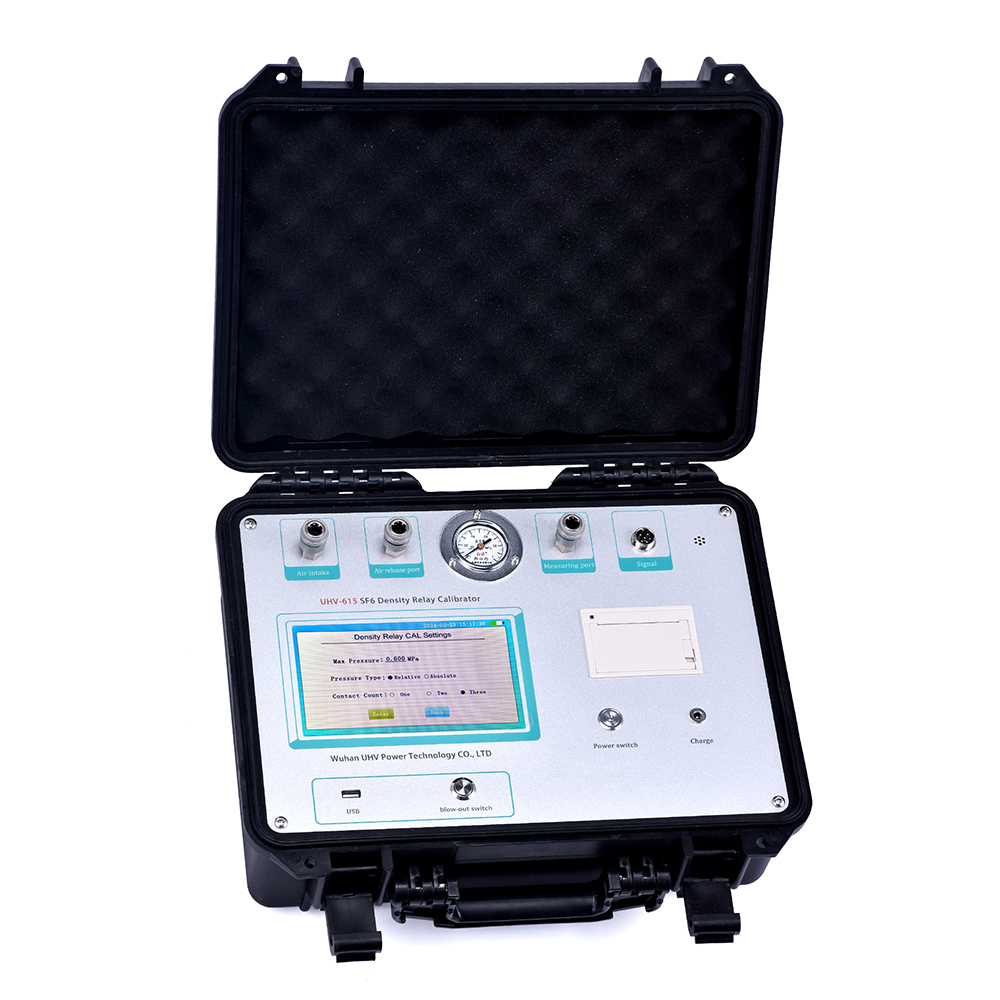

6、Human computer interface friendly: equipped with a 7-inch high-definition full-color touch screen, easy to operate, beautiful interface, and all parameters and status are clear at a glance.
7、Complete supporting transition joints: This product is a portable instrument equipped with multiple types of transition joints. Most models of switch density relays can be verified on-site without disassembly, making it the best choice for SF6 density relay calibration.
8、Low gas consumption: During the verification process, the gas consumption is minimal, SF6 gas is not wasted, testing costs are low, and there is no pollution.
9、Support data storage: The instrument is equipped with a built-in large capacity memory, which can instantly save test results and has the function of saving power down data. It can query and print historical test data at any time.
10、Support printing: After the test is completed, all relevant test results can be printed immediately, and historical data can also be printed for analysis.
11、USB flash drive storage: supports USB flash drive storage of historical test data, which can be read through the supporting upper computer software for easy and fast operation.
12、Convenient to carry: The instrument is powered by a large capacity lithium battery and does not require AC power, solving the problem of difficulty in obtaining electricity outdoors. After the instrument is fully charged, it can work for a long time and can also be plugged into a charger to work at the same time.
13、Powerful PC software features: The accompanying PC upper computer application software is powerful and easy to operate, enabling data display, Word format saving, printing, and generating complete test reports for centralized data management.
14、Switching between Chinese and English: Customers can switch between Chinese and English on the main interface of the instrument, which can meet the needs of different customer groups, and other languages can be customized.
Application Scenarios
Substation on-site Used for calibration of density relays on SF₆ circuit breakers, GIS, and other equipment in substations.
GIS switchgear Used for action value testing and calibration of SF₆ gas density relays on GIS equipment.
SF₆ high-voltage circuit breakers Tests the alarm, lockout, and other action values of SF₆ density relays on circuit breakers.
Power equipment maintenance and servicing Performs on-site calibration of SF₆ density relays during regular maintenance and preventive testing.
Power equipment installation and commissioning Performs functional verification of SF₆ density relays before new equipment installation or commissioning.
SF₆ density relay manufacturers Used for factory inspection, performance testing, and quality control of products.
Power testing organizations / testing centers Used for metering, testing, and calibration of SF₆ density relays.
On-site testing of outdoor high-voltage equipment Powered by battery with a portable design, suitable for on-site test environments without a fixed power supply.
Frequently Asked Questions
Q:What is UHV-615 used for?
A:UHV-615 is mainly used for calibrating and testing SF6 gas density relays, including alarm, lockout and overpressure contact values.
Q:How much SF6 gas does the testing process consume?
A:SF6 gas consumption during the verification process is very low, which helps reduce gas waste and testing costs.
Q:Can it test multiple contacts at the same time?
A:Yes. It can test 1–3 sets of contacts simultaneously, including normally open and normally closed contacts, and measure their upper and lower action values.
Q:Can it test density relays with small action values?
A:Yes. The instrument uses high-speed A/D sampling technology and can detect small action values of SF6 density relays.
Note:
1. Before use, should check whether the power supply under-voltage, if under-voltage should be timely charging. Through the power on the instrument panel of 'power' 'charging' instructions exhibit of lanterns lit, after the battery is fully charge indicator lamp goes off.
Connect or disconnect the charger should first turn off the power , or may damage the instrument!!
If with printer please don't print when charging, in order to avoid over-load damage to power load. Long-term when not in use for 2-3 months should charge and discharge time, to extend the battery life.
2. Be confirmed before the calibrated meter without power in connection.
3. The instruments are precision instruments, in use, the transport process should avoid strong vibration.
4. The instrument self checking function is only for factory use.
5. It is strictly prohibited to use the gas source with impurities, and the test pipeline is strictly forbidden to enter the oil pollution.
6. The pressure of the portable SF6 gas cylinder is not more than 2.5MPa when gas filling.
