In the field of power equipment testing, the variable frequency series resonant withstand voltage test device plays a crucial role. It is not only a "physical examination doctor" to ensure the safe operation of power equipment, but also a powerful assistant to improve the efficiency and accuracy of experiments. How should we choose a truly reliable device among numerous products?

Understanding the principle of frequency conversion series resonance test

Let's talk about this name that sounds somewhat technical. Frequency conversion series resonance withstand voltage test, in simple terms, is to use the principle of series resonance circuit to generate a high test voltage at a lower power supply voltage, and conduct withstand voltage performance testing on high-voltage power equipment. The term 'frequency conversion' here refers to the adjustable frequency of the test power supply, which allows us to accurately locate the resonance point based on the characteristics of different devices and obtain the required test voltage.

Key factors affecting the effectiveness of the experiment

There are many factors that affect the effectiveness of the frequency conversion series resonance withstand voltage test, mainly including:

The quality and stability of the equipment itself: The performance of core components such as variable frequency power supplies, reactors, coupling capacitors, etc. directly determines the accuracy and safety of the test.

Experimental environment: Temperature, humidity, altitude, etc. can all affect the breakdown voltage of insulation materials and need to be adjusted according to the actual situation.

The status of the tested equipment: The degree of insulation aging and defect situation of the equipment are the direct objects of the test and need to be accurately evaluated.

The professional level of operators: proficient operation and accurate interpretation of experimental data are key to ensuring the reliability of experimental conclusions.

With the help of sharp tools: professional support from Wuhan UHV Power Technology Co., Ltd

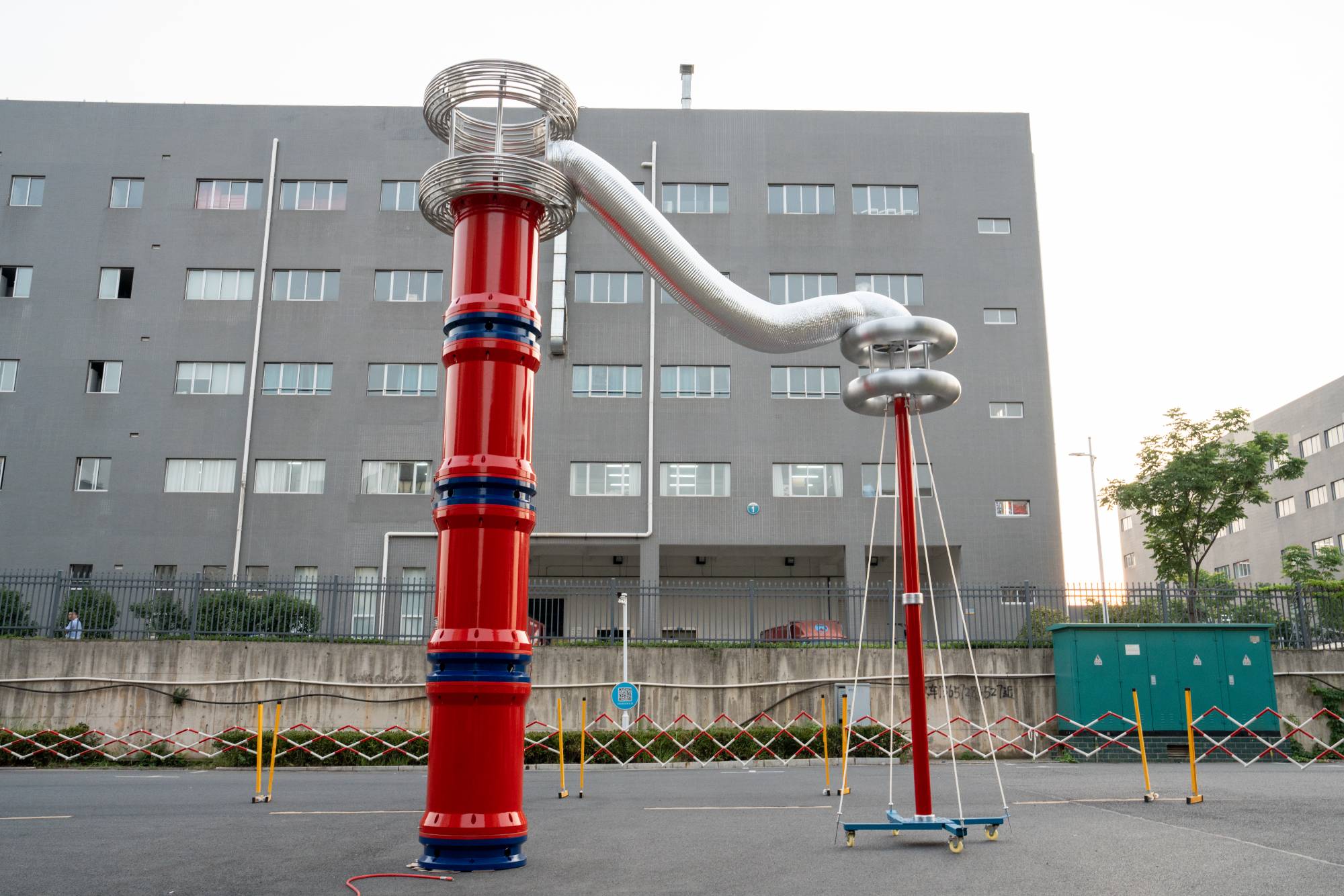

A set of high-performance equipment is essential for conducting voltage withstand tests on frequency conversion series resonance. Wuhan UHV Power Technology Co., Ltd. has provided a series of excellent variable frequency series resonant withstand voltage test devices with its profound technical accumulation and research and development strength. These devices adopt advanced frequency conversion control technology, which can accurately adjust frequency and voltage, and ensure the safety and reliability of the testing process through intelligent protection functions.

Why choose Wuhan UHV Power Technology Co., Ltd?

Wuhan UHV Power Technology Co., Ltd. has been deeply involved in the field of power testing equipment for many years and has accumulated rich industry experience. They not only provide high-quality variable frequency series resonant withstand voltage testing equipment, but also focus on providing customers with comprehensive technical support and solutions. From equipment selection to on-site testing guidance, to after-sales service, Wuhan UHV Power Technology Co., Ltd. has always won the trust of customers with professional and reliable services. Their products are widely used in multiple core power fields such as substations, power plants, and transmission lines, contributing to the safe operation of the power grid.

How can we do better?

To conduct a better frequency conversion series resonance withstand voltage test, in addition to selecting suitable equipment, it is also necessary to:

Thoroughly understand the characteristics of the tested equipment: consult the technical information of the equipment, clarify its rated voltage, test voltage level, and possible weak links.

Develop a detailed experimental plan: clarify key parameters such as experimental steps, voltage rise and fall rate, and insulation time.

Strictly follow the test procedures: ensure standardized operation and timely record of test data.

Analyze the test results: accurately evaluate the insulation performance of the equipment by combining the equipment status and test data.

Continuous learning and communication: Pay attention to the latest technological trends in the industry, exchange experiences with peers, and continuously improve professional abilities.

Frequency conversion series resonance withstand voltage test is a rigorous and important task. Choosing a stable and reliable test device, combined with professional operation and analysis, can ensure the health and safety of power equipment.

Frequently Asked Questions (FAQ)

Q: What power equipment is the frequency conversion series resonance withstand voltage test device mainly used to test? Answer: It is mainly used for conducting voltage withstand tests on various high-voltage power equipment, such as transformers, transformers, cables, generators, circuit breakers, GIS equipment, etc.

Q: Why is it necessary to conduct a series resonance withstand voltage test? Answer: Series resonance test can generate high test voltage at lower power supply, which is particularly necessary for high-voltage equipment with larger capacity to undergo withstand voltage test. It can effectively detect insulation defects of the equipment and prevent breakdown accidents during operation.

Q: What are the advantages of variable frequency series resonance test compared to traditional voltage withstand test methods? Answer: The variable frequency series resonance test has advantages such as small power capacity, high efficiency, easy portability, and strong intelligent protection function.

Q: What safety precautions should be taken when conducting frequency conversion series resonance tests? Answer: During the experiment, it is necessary to strictly follow the safety operating procedures. Warning signs should be set up in the experimental area, and unrelated personnel are prohibited from entering. The experimental personnel must have professional knowledge and take personal protective measures.

Q: How to ensure the accuracy of data for the variable frequency series resonant withstand voltage test device? Answer: To ensure data accuracy, it is necessary to select a stable testing device, connect the testing circuit correctly, set the testing parameters reasonably, and control the testing environment as necessary. Regular calibration and maintenance of equipment are also crucial.
